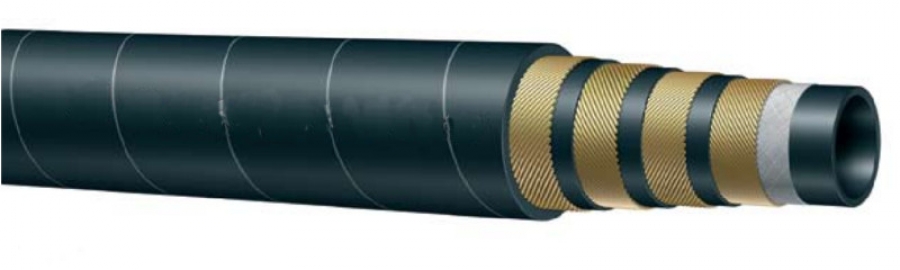

Hydraulic Hose SAE 100R9



Heavy duty, high impulse, four spiral steel wire reinforced, rubber covered hydraulic hose

Tube: oil resistant synthetic rubber;

Reinforcement: four spiral plies of steel wire wrapped in alternating directions;

Cover: oil and weather resistant synthetic rubber.

Temperature:-40℃.to +121℃



Hose ID

Wire OD

Hose OD

Working Pressure

Burst Pressure

Minimum bend radius

Weight

inch

mm

mm

mm

Mpa

Psi

Mpa

Psi

mm

Kg/m

3/8

9.5

17.5

21

44.5

6450

180

26000

180

0.8

1/2

12.7

20.2

24

41.5

6000

166

24000

230

0.9

5/8

15.9

23.8

28.2

35

5000

140

20000

250

1.2

3/4

19.0

28.2

32.2

35

5000

140

20000

300

1.6

1

25.4

35.5

39.7

28

4000

112

16000

340

2.1

1-1/4

31.8

46

50.8

21

3000

84

12000

460

3.3

1-1/2

38.1

52.4

57.7

18.5

2700

74

10800

560

3.7

2

50.8

65.3

69.6

16.5

2400

66

9600

660

5.5

Hydraulic Hose SAE 100R9 Hydraulic Hose SAE 100R9 Hydraulic Hose SAE 100R9 is Heavy duty, high impulse, four spiral steel wire reinforced, rubber covered hydraulic hose
