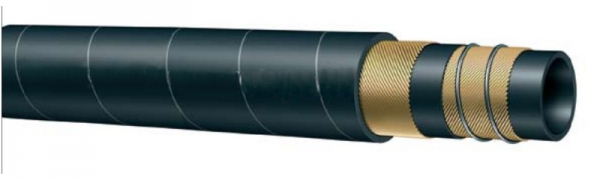

Hydraulic Hose SAE 100R5

Recommended for: Medium pressure hydraulic oil lines, other air, water and oil service

Tube: Black, oil and heat resistant synthetic rubber.

Reinforcement: Textile inner braid and a braid of higher tensile steel wire

Cover: Black, oil, abrasion and weather resistant synthetic rubber (wrapped impression).

Temperature Range: -40 ℃ to +100℃

I.D.

O.D.

MAX WP

BEND RADIUS

in.

mm.

in.

mm.

psi

Mpa

in.

mm.

3/16

5

0.51

13

3000

21

3

75

1/4

6.4

0.58

14.7

3000

21

3.4

85

5/16

8

0.67

17

2250

15.5

4

100

13/32

10.5

0.76

19.2

2000

14

4.6

115

1/2

12.9

0.91

23.1

1750

12

5.6

140

5/8

16

1.06

27

1500

10.5

6.6

165

7/8

22.2

1.22

31

800

5.5

7.4

185

1 1/8

28.6

1.49

37.8

650

4.5

9.2

230

1 3/8

35

1.74

44.2

500

3.5

10.6

265

1 13/16

46.2

2.2

55.9

363

2.5

13.4

335

2 3/8

60.3

2.87

73

348

2.4

24.4

610

Hydraulic Hose SAE 100R5 Hydraulic Hose SAE 100R5 Hydraulic Hose SAE 100R5 is Recommended for: Medium pressure hydraulic oil lines, other air, water and oil service
