HIGH PRESSURE & ULTRA HIGH PRESSURE PTFE HOSE

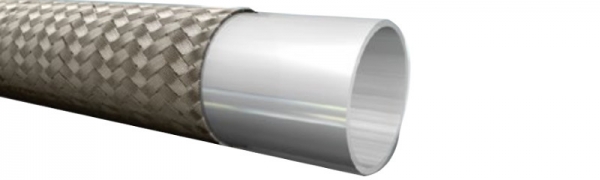

Our ultra-high pressure hose series is constructed with a carbon black anti-static (conductive) PTFE post-sintered inner core and stainless steel wire braid reinforcement. The MHP and UHP series hose is the premiere product for rapid rate impulse applications.

This product is ideal for use in the gas industries and heavy duty applications.

We offer high pressure PTFE hose in both post-sintered (for gaseous and heavy duty applications) and nonpost-siintered (for most industrial applications) options.

Temperature rating: -65°F to 450°F



Nominal Size

I.D

O.D

Min. Bend Radius

Operating Pressure

(in)

(in)

(in)

(in)

(psi)

1/4

0.222

0.390

1.5

5,000

3/8

0.308

0.490

2.5

5,000

1/2

0.401

0.615

2.9

5,000

5/8

0.495

0.730

3.3

5,000

3/4

0.617

1.990

3.9

5,000

1

0.867

1.270

5.0

5,000

1 1/4

1.118

1.660

12.0

5,000

1 1/2

1.375

1.900

14.0

4,000

1/4

0.222

0.390

1.5

5,000

High Pressure PTFE Hose High Pressure PTFE Hose High Pressure PTFE Hose Our ultra-high pressure hose series is constructed with a carbon black anti-static (conductive) PTFE post-sintered inner core and stainless steel wire braid reinforcement.
