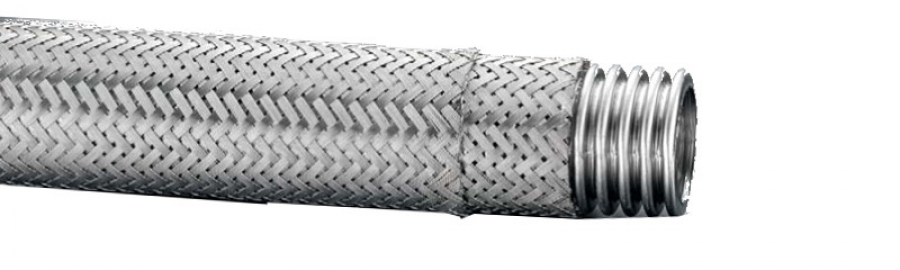

HPC High Pressure



Annular Corrugated Metal Hose

Principal Applications

HPC is ideal for the conveyance of all fluids at elevated pressures within a wide range of temperatures.

HPC being inherently leak proof is suitable for high pressure and heavy duty applications, in many instances replacing high pressure rubber hydraulic hose in high temperature environments.



Standards: Manufactured to the specifications where applicable of ISO 10380.

Supply Lengths: Random lengths of 10-30 metres depending upon diameter.



Product Cod: HPC_ _ _

Materials of Construction

Hose: AISI 304, AISI 316/L

Braid: AISI 304 (standard), AISI 316



Specifications

Nominal bore

Nominal

bore

Outside

Dimensions

Nominal

Pressure

Burst

Pressure

Static

Bend Radius

Dynamic

Bend Raduis

Weight

(mm)

(mm)

(mm)

(bars)

(bars)

(mm)

(mm)

(kg/M)

6

1/4”

13.0

255

1020

25

110

0.80

10

3/8”

19.4

195

780

38

150

1.00

12

1/2”

21.8

185

740

45

165

1.20

20

3/4”

34.5

145

580

60

210

1.60

25

1”

43.0

125

500

80

230

2.50

32

1 1/4”

53.5

122

488

90

270

3.60

40

1 1/2”

62.0

120

480

110

310

4.40

50

2”

70.0

100

400

130

400

4.70

63

2 1/2”

89.0

65

260

210

500

6.00

75

3”

103.0

60

240

230

600

7.50

100

4”

129.0

38

152

500

1000

9.00

125

5”

157.0

32

128

560

1100

11.00

150

6”

182.0

30

120

610

1200

16.00

High Pressure Flexible Metal Hose High Pressure Flexible Metal Hose High Pressure Flexible Metal Hose being inherently leak proof is suitable for high pressure and heavy duty applications, in many instances replacing high pressure rubber hydraulic hose in high temperature environments.
