SAE 100R13

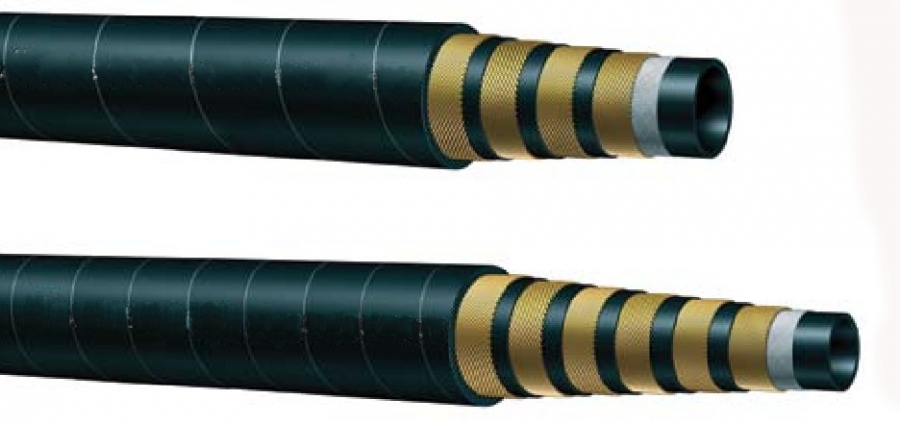

Heavy duty, high impulse, multiple spiral steel wire reinforced, rubber covered hydraulic hose

Tube: oil resistant synthetic rubber;

Reinforcement: four or six spiral plies of steel wire wrapped in alternating directions;

Cover: oil and weather resistant synthetic rubber.

Temperature:-40℃.to +121℃

Hose ID

Wire OD

Hose OD

Working Pressure

Burst Pressure

Minimum bend radius

Weight

inch

mm

mm

mm

Mpa

Psi

Mpa

Psi

mm

Kg/m

3/4

19.0

28.4

32.1

34.5

5000

138

20000

240

1.7

1

25.4

34.8

38.7

34.5

5000

138

20000

300

2.25

1-1/4

31.8

47.5

50.2

34.5

5000

138

20000

420

3.9

1-1/2

38.1

52.5

57.7

34.5

5000

138

20000

500

5.1

2

50.8

68

71.5

34.5

5000

138

20000

630

7.9





SAE 100R13 hose SAE 100R13 hose SAE 100R13 hose is kinds of Heavy duty, high impulse, multiple spiral steel wire reinforced, rubber covered hydraulic hose
