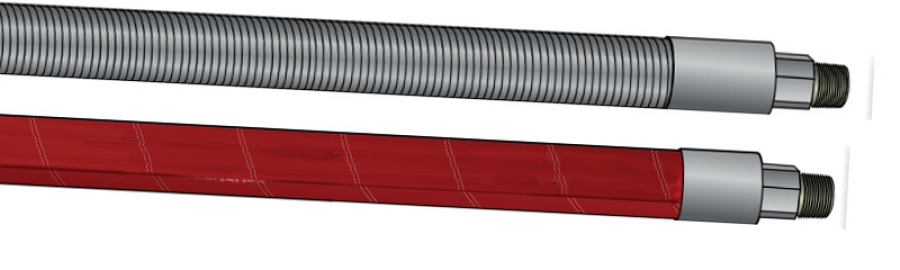

BOP Control Hose
Application: the hose for well control—GNG high-pressure, fire-resistant and heat-insulation hose assembly is mainly used for the hydraulic control of the BOP for drilling and for hydraulic transmission at high temperature and flammable places in the metallurgic industry.
Classification: high molecular polymer jacket type; stainless steel armored jacket type and braided stainless steel wire jacket type
Standard: API Spec 16D; SY/T5053.2-2002
|
I.D(mm) |
O.D(mm) |
W.P(MPA) |
B.P(MPA) |
Min. Bending Radius(MM) |
Thread |
Working Time with Fire-Resistance at 750C |
|
|
Normal |
Limit |
||||||
|
6.3 |
24 |
35 |
105 |
130 |
NPT,LP |
5 |
25 |
|
26 |
70 |
175 |
|||||
|
8 |
28 |
35 |
105 |
140 |
|||
|
32 |
70 |
175 |
|||||
|
10 |
30 |
35 |
105 |
160 |
|||
|
34 |
70 |
175 |
|||||
|
12.5 |
37 |
35 |
105 |
210 |
|||
|
43 |
70 |
175 |
|||||
|
16 |
41 |
35 |
105 |
260 |
|||
|
47 |
70 |
175 |
|||||
|
19 |
44 |
35 |
105 |
280 |
|||
|
50 |
70 |
175 |
|||||
|
22 |
47 |
35 |
105 |
320 |
|||
|
53 |
70 |
175 |
|||||
|
25 |
50 |
35 |
105 |
360 |
|||
|
56 |
70 |
175 |
|||||
|
31.50 |
56 |
35 |
105 |
460 |
|||
|
62 |
70 |
175 |
|||||
|
38 |
63 |
35 |
105 |
560 |
|||
|
|
|
|
|||||
