Stripwound Metal Hose



Description

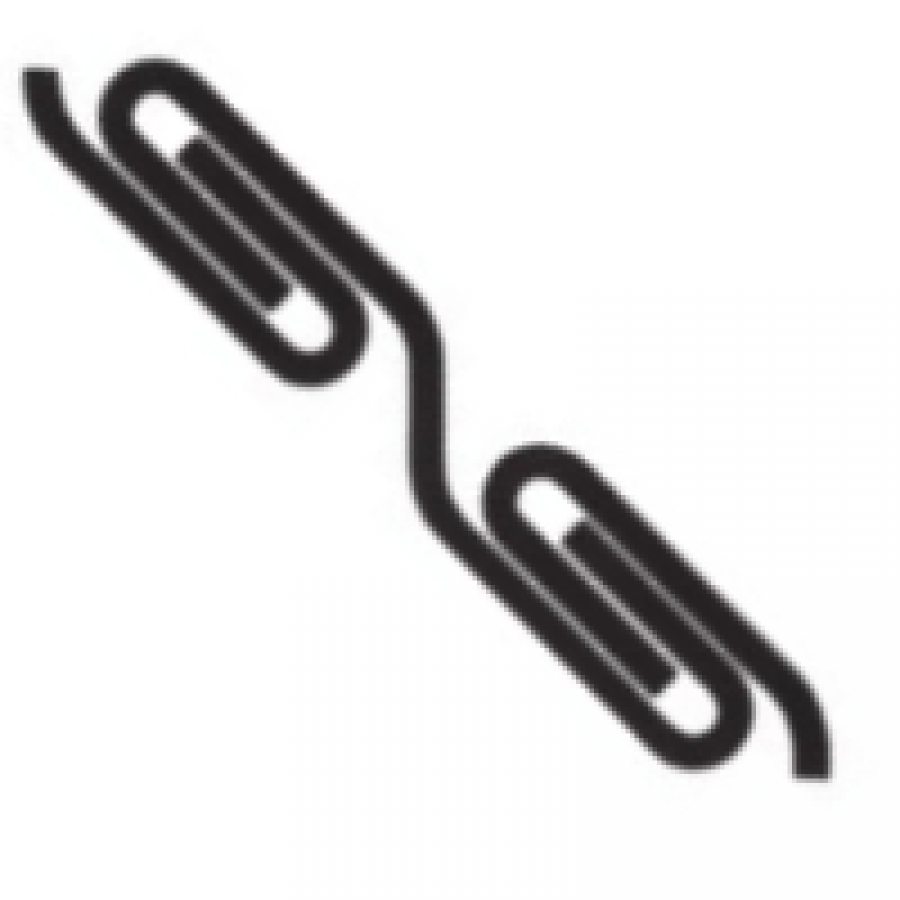

Stripwound Metal Hose made by helically winding a pre-formed metal strip into a fully interlocked profile. The hose gets its flexibility and suppleness from the sliding of metal components within the interlock section.

Principal Applications

The ideal hose for conveyance of truck exhaust gas and all applications requiring a very strong and flexible hose. Very efficient mechanical protection (armouring against impact, crushing, hot metal splash) of rubber hoses, electrical cables and heat insulation of technical hoses.In the smaller diameters, excellent mechanical protection of electric wires and cables, telephone hand set cables, security roller doors, thermocouplers, instrument wires and parachute rip cord housings. Also ideal as a lining for other hoses in abrasive media applications.

Standards

Manufactured to the specifications where applicable of ISO 15465 Type DOU.

Pressure Capability

Whilst this hose cannot be expected to retain gas or materials under pressure, it can generally be used for pressures up to1 bar (100 kpa) where the discharge end of the hose is open ended.

Materials of Construction and Temperature

Galvanized Steel - up to 350˚C

Stainless Steel AISI 304 - up to 750˚C

Supply Lengths - standard

5-152mm- 9, 15 metes

178-355mm- 5 metes



Specifications Nominal bore

Nominal bore

Outside Dimensions

Static Bend Raduis

Dynamic Bend Radius

Weight

(mm)

(inches)

(mm)

(mm)

(mm)

(kg/M)

5

3/16”

7.2

27

1.1

0.09

6

1/4”

8.3

32

1.3

0.11

8

5/16”

10.3

35

1.4

0.14

10

3/8”

12.5

37

1.5

0.17

12

1/2”

15.0

62

2.4

0.23

19

3/4”

22.0

140

5.5

0.65

25

1”

28.0

152

6.0

0.75

32

1 1/4”

36.0

160

6.3

0.85

38

1 1/2”

41.3

166

6.6

1.14

41

1 5/8”

44.3

180

7.1

1.20

44

1 3/4”

47.3

190

7.5

1.30

48

1 7/8”

51.3

195

7.8

1.40

51

2”

54.3

205

8.1

1.50

57

2 1/4”

60.3

235

9.2

1.70

63

2 1/2”

66.3

260

10.2

1.90

69

2 3/4”

73.3

285

11.2

2.10

76

3”

79.3

305

12.0

2.30

90

3 1/2”

94.2

350

13.7

3.24

102

4”

106.2

370

14.6

3.50

114

4 1/2”

118.2

490

19.3

4.00

127

5”

131.2

515

20.2

4.50

140

5 1/2”

114.2

600

23.6

4.90

152

6”

156.2

655

25.7

5.20

178

7”

183.0

740

29.2

7.50

203

8”

208.0

800

31.5

8.50

230

9”

234.0

950

38.0

9.50

254

10”

259.0

1100

43.7

10.60

305

12”

310.0

1400

55.1

13.00

355

14”

360.0

1600

63.0

15.00
