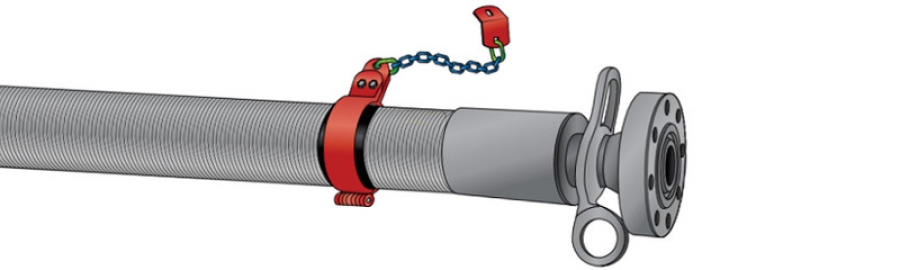

Choke and Kill Hose



Tube: Fluoroelastomer , resists abrasion, corrosion, oil, weather and up to 20% H2S

Reinforcement: Multiple layers of polyester cord over tube, high tensile steel cables.

Cover: NBR, Specially compounded, resistant to abrasion, corrosion, cutting, gouging, oil and weather.

Application: Flexible Connection between standpipe and swivel(Rotary Drilling) or between pump and standpipe(Rotary Vibrator) for pumping mud at extra high pressure in oil drilling and exploration work.

Fitting: Hammer Unions, API Male End, Flanges

Attachment: Safety Clamp & Chain

Applicable Standard: API Spec 16C; SY/T5323-2004



ID, mm(inch)

WP,MPA(PSI)

BP,MPA(PSI)

Min. Bending Radius(mm)

50.8(2)

35.0(5000)

105.0(15000)

900

64(2 1/2)

1000

76(3)

1000

89(3 1/2)

1100

101.6(4)

1200

50.8(2)

52.0(7200)

70.0(10000)

1950

63.5(2 1/2)

1000

76.2(3)

1050

89(3 1/2)

1150

101.6(4)

1250

50.8(2)

70.0(10000)

157.5(22500)

1000

63.5(2 1/2)

1100

76.2(3)

1150

89(3 1/2)

1200

101.6(4)

1250

50.8(2)

105.0(15000)

236.25(33750)

1000

63.5(2 1/2)

1150

76.2(3)

1200

50.8(2)

138.0(20000)

310.0(45000)

900

64(2 1/2)

1100

76.2(3)

1200







Choke and Kill Hose Choke and Kill Hose Choke and kill hose used Flexible Connection between standpipe and swivel(Rotary Drilling) or between pump and standpipe(Rotary Vibrator) for pumping mud at extra high pressure in oil drilling and exploration work.
