SMOOTHE BORE MED. PRESSURE PTFE HOSE

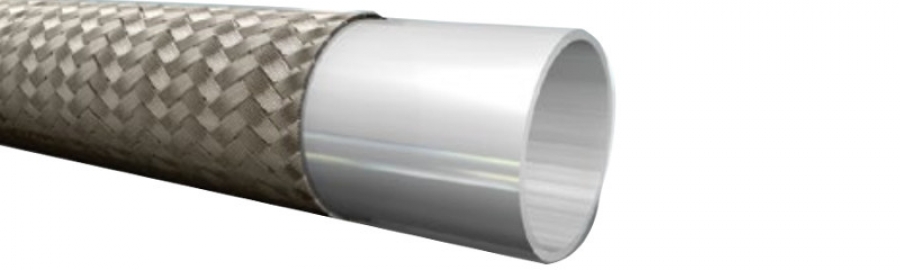

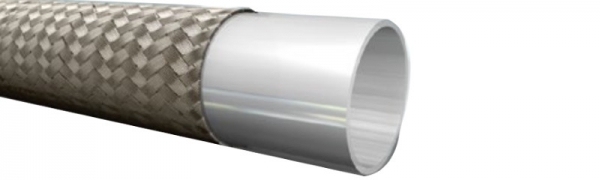

A smooth bore PTFE stainless steel wire reinforced hose designed for high purity applications and chemical extremes. An excellent choice for pharmaceutical, food and beverage applications.
Standard fitting material is stainless steel or brass.
|
Nominal Size |
I.D |
O.D |
Min. Bend Radius |
Operating Pressure |
Min. Burst Pressure |
|
(in) |
(in) |
(in) |
(in) |
(psi) |
(psi) |
|
3/16 |
0.125 |
0.234 |
2 |
3,000 |
15,000 |
|
1/4 |
0.187 |
0.312 |
2 |
3,000 |
14,000 |
|
5/16 |
0.0250 |
0.375 |
3 |
3,000 |
13,000 |
|
3/8 |
0.312 |
0.445 |
4 |
2,500 |
12,000 |
|
1/2 |
0.406 |
0.649 |
5.2 |
2,000 |
9,000 |
|
5/8 |
0.500 |
0.648 |
6.5 |
1,500 |
8,500 |
|
3/4 |
0.625 |
0.778 |
7.7 |
1,200 |
6,000 |
|
1 |
0.875 |
1.030 |
9 |
1,000 |
4,000 |
|
1 1/4 |
1.125 |
1.315 |
16 |
800 |
3,200 |
