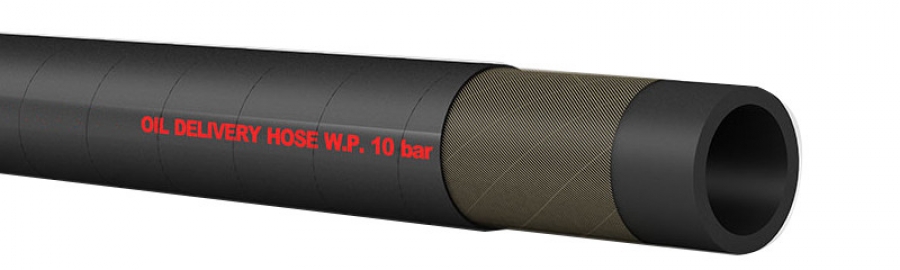

Fuel and Oil Delivery Hose
Fuel and Oil Delivery Hose used for the delivery of petroleum products with aromatic content up to 30%.
Tube: black, smooth, NBR rubber.
Reinforcement: high strength synthetic cord plus antistatic copper wire.
Cover: black, smooth (wrapped finish), synthetic rubber, weathering and oil resistant.
Temperature: from -20°C (-4°F) to +70°C (+158°F).
|
Inside Diameter |
Outside Diameter |
Working Pressure |
Burst Pressure |
Nominal Weight |
|||||
|
Mm inch |
Mm inch |
Bar psi |
Bar psi |
kg/m lbs/ft |
|||||
|
13 |
1/2 |
20 |
0,79 |
10 |
150 |
30 |
450 |
0,24 |
0,16 |
|
19 |
3/4 |
27 |
1,06 |
10 |
150 |
30 |
450 |
0,36 |
0,24 |
|
25 |
1 |
35 |
1,38 |
10 |
150 |
30 |
450 |
0,62 |
0,42 |
|
32 |
1-1/4 |
42 |
1,65 |
10 |
150 |
30 |
450 |
0,76 |
0,51 |
|
38 |
1-1/2 |
48 |
1,89 |
10 |
150 |
30 |
450 |
0,82 |
0,55 |
|
51 |
2 |
61 |
2,40 |
10 |
150 |
30 |
450 |
1,06 |
0,71 |
|
63,5 |
2-1/2 |
74 |
2,92 |
10 |
150 |
30 |
450 |
1,39 |
0,93 |
|
76 |
3 |
89 |
3,51 |
10 |
150 |
30 |
450 |
2,03 |
1,36 |
|
90 |
3-35/64 |
105 |
4,14 |
10 |
150 |
30 |
450 |
2,72 |
1,83 |
|
102 |
4 |
115,5 |
4,55 |
10 |
150 |
30 |
450 |
2,80 |
1,88 |
|
127 |
5 |
143 |
5,63 |
10 |
150 |
30 |
450 |
4,12 |
2,77 |
|
152 |
6 |
172 |
6,78 |
10 |
150 |
30 |
450 |
6,05 |
4,06 |
