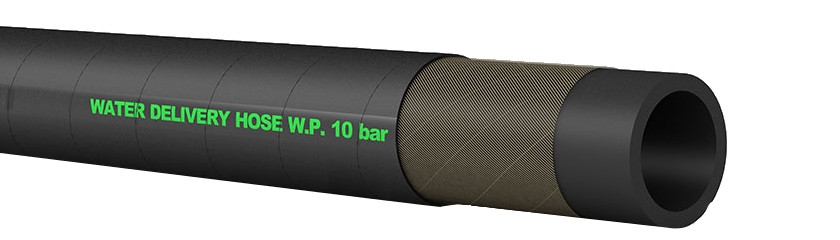

Water Suction Hose 10bar
Water Suction Hose 10bar
hardwall hose for suction and discharge of water and non corrosive liquids, suitable to be rolled up on mono-spiral hose reels.
Tube: black, smooth, synthetic rubber.
Reinforcement: high strength synthetic cord, and helix wire.
Cover: black, smooth (wrapped finish), synthetic rubber, weathering and ozone resistant.
Temperature: from -30°C (-22°F) to +70°C (+158°F).
|
Inside Diameter |
Outside Diameter |
Working Pressure |
Burst Pressure |
Nominal Weight |
Vacuum |
|||||
|
Mm inch |
Mm inch |
Bar psi |
Bar psi |
kg/m lbs/ft |
bar |
|||||
|
32 |
1-1/4 |
50 |
1,97 |
10 |
150 |
40 |
600 |
1,62 |
1,09 |
0,9 |
|
32 |
1-1/4 |
50 |
1,97 |
10 |
150 |
40 |
600 |
1,62 |
1,09 |
0,9 |
|
38 |
1-1/2 |
55 |
2,17 |
10 |
150 |
40 |
600 |
1,62 |
1,09 |
0,9 |
|
51 |
2 |
68 |
2,68 |
10 |
150 |
40 |
600 |
2,36 |
1,58 |
0,9 |
|
63,5 |
2-1/2 |
82,5 |
3,25 |
10 |
150 |
40 |
600 |
3,39 |
2,28 |
0,9 |
|
76 |
3 |
97 |
3,82 |
10 |
150 |
40 |
600 |
3,98 |
2,68 |
0,9 |
|
100 |
3-15/16 |
127 |
5,00 |
10 |
150 |
40 |
600 |
6,61 |
4,44 |
0,9 |
|
110 |
4-21/64 |
3 |
45 |
10 |
150 |
40 |
600 |
3,86 |
2,59 |
0,9 |
|
120 |
4-23/32 |
3 |
45 |
10 |
150 |
40 |
600 |
4,03 |
2,71 |
0,9 |
|
127 |
5 |
3 |
45 |
10 |
150 |
40 |
600 |
4,71 |
3,17 |
0,9 |
|
152 |
6 |
3 |
45 |
10 |
150 |
40 |
600 |
6,28 |
4,22 |
0,9 |
|
203 |
8 |
3 |
45 |
10 |
150 |
40 |
600 |
9,47 |
6,36 |
0,9 |
|
254 |
10 |
3 |
45 |
10 |
150 |
40 |
600 |
11,73 |
7,88 |
0,9 |
