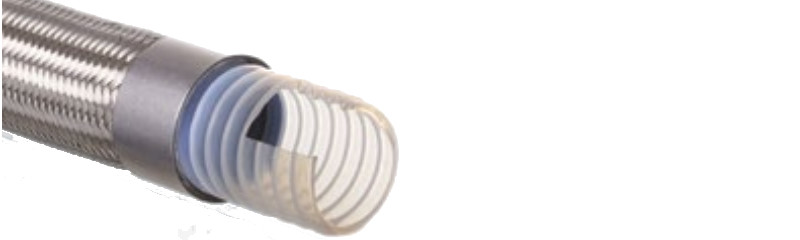

Convoluted PTFE Hose
CONVOLUTED PTFE HOSE
Self draining helical PTFE stainless steel wire reinforced hose ideal for demanding high purity and chemical applications.
Standard fitting material is stainless steel, steel and Halar encapsulated.
|
Nominal Size |
I.D |
O.D |
Min. Bend Radius |
Operating Pressure |
Min. Burst Pressure |
Max. Length |
|
(in) |
(in) |
(in) |
(in) |
(psi) |
(psi) |
(ft) |
|
1/2 |
0.512 |
0.785 |
1 |
1,000 |
4,000 |
75 |
|
3/4 |
0.750 |
1.090 |
2 |
1,000 |
4,000 |
50 |
|
1 |
0.998 |
1.300 |
3 |
1,000 |
4,000 |
50 |
|
1 1/4 |
0.239 |
1.560 |
6.25 |
1,500 |
4,000 |
50 |
|
1 1/2 |
0.500 |
1.792 |
7.5 |
750 |
3,000 |
50 |
|
2 |
0.982 |
2.333 |
10 |
500 |
2,500 |
50 |
